SI 18.200-40,00 FI  KNH - LU

SI 18.200-40,00 FI KNH - LU

Part No.


Overview

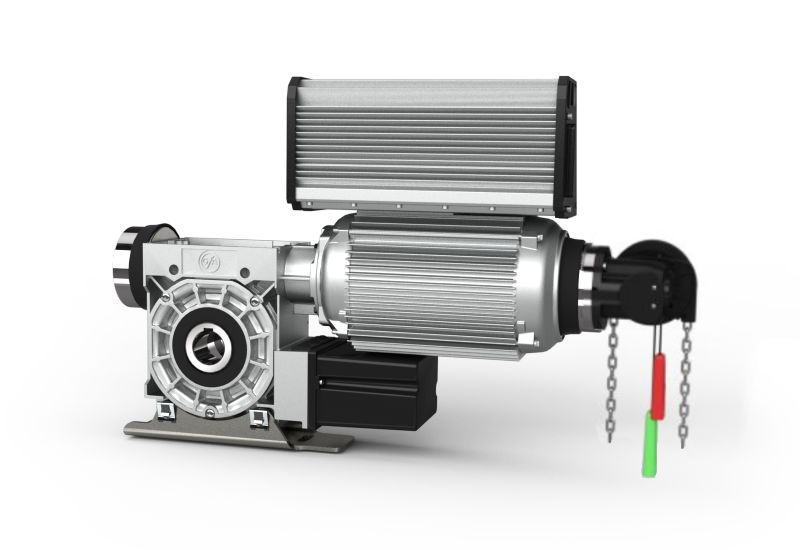

ELEKTROMAT “Safedrive“ SI 18.200-40,00 FI - LU
• with gearbox ventilation
• Integrated safety brake with
• Output Torque 180 Nm
• Output Speed 20-200 min-1
• Diameter Hollow Shaft 40 mm
• Protection Class IP65
• Supply Voltage/ Frequency FI-Motor: 3x400 V / 3x400 V/N
• Limit Switch/Type DES4
• Limit Switch Range=20
• Hand Chain Operator / KNH / 4m chain
• Gear Box Mounting /Floating Foot
• FI Inverter mounted on the Operator (4.5 kW)

Support

SI 18.200 FI | Manual
SI 18.200 | 2D Drawing
