Part Number: 10003580.10002
Safedrive SI 25.15-30,00 GH - KNH - with Solenoide Brake and Breather
Shipping calculated at checkout.
Overview

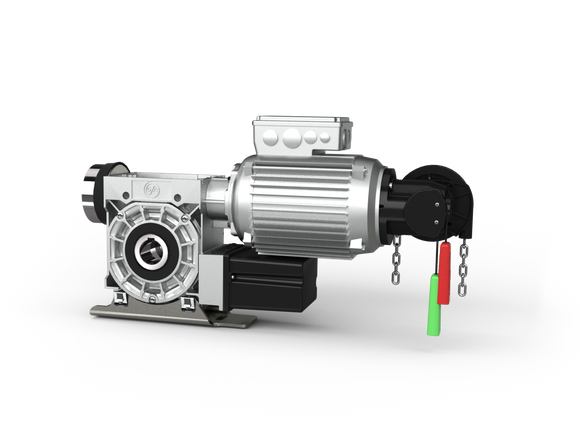

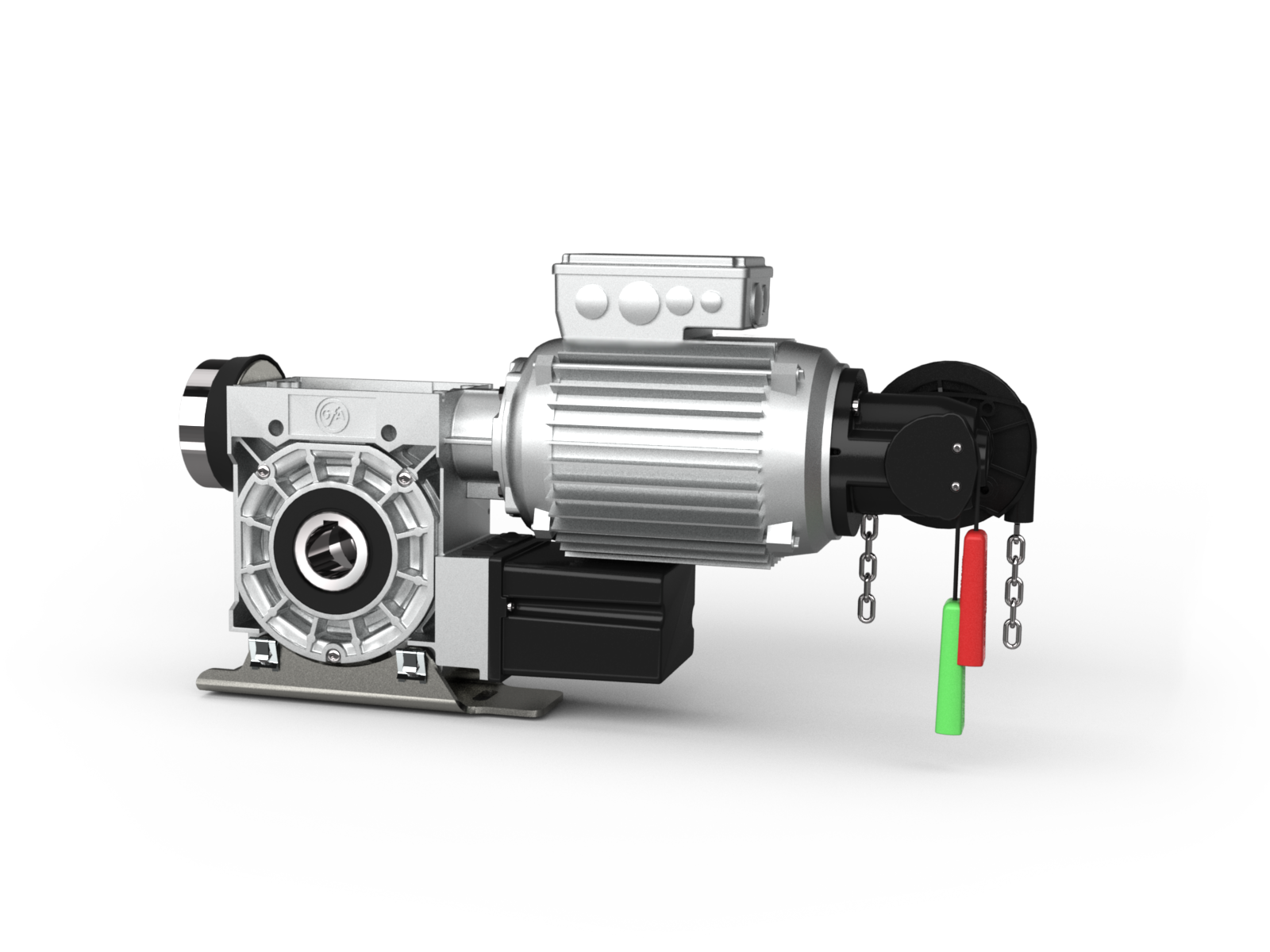

ELEKTROMAT „Safedrive“ SI 25.15-30,00 (SG85)
High Cycle Operator with a Solenoid Brake and a Breather
• With integrated safety brake
• With Gearbox Breather
• with spring loaded Solenoid Brake
• Output torque 250Nm
• Output speed 15 min-1
• 30mm hollow shaft diameter
• protection class IP54
• supply voltage/frequency 3X415V/50Hz (without N)
• DES (digital) limit switch
• limit switch range E=20
• emergency hand chain operator (1:4,5)
• fixing floating foot
• without control
• mounting position horizontal or vertical, motor positioned below gear box
In The Box
1 x SI 25.15 HC Operator
