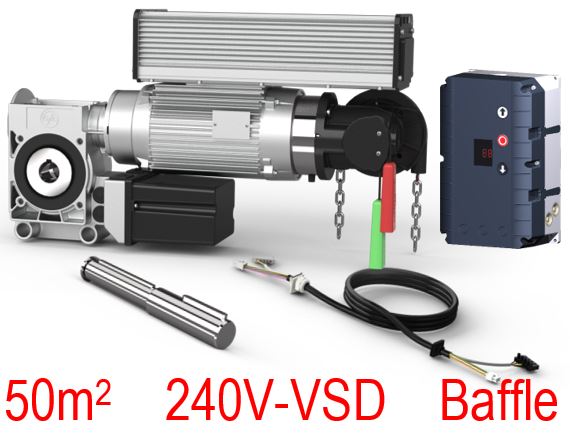

Kit KE 17.60-VSD - TS 981 - Smoke Baffle | 50 m2 - 240V

Overview

Balanced Chain Drive | Operator Kit

KE 17.60 / 170 Nm / 60 RPM / 240V or 415V+N / Digital Limits / Soft Start/Stop / No Handing
Balanced | Maximum Door Size (m2): 50
High Cycle: 30 cycles/hr
Rating IP65*
Controller: TS 981 Logic / Smoke Baffle

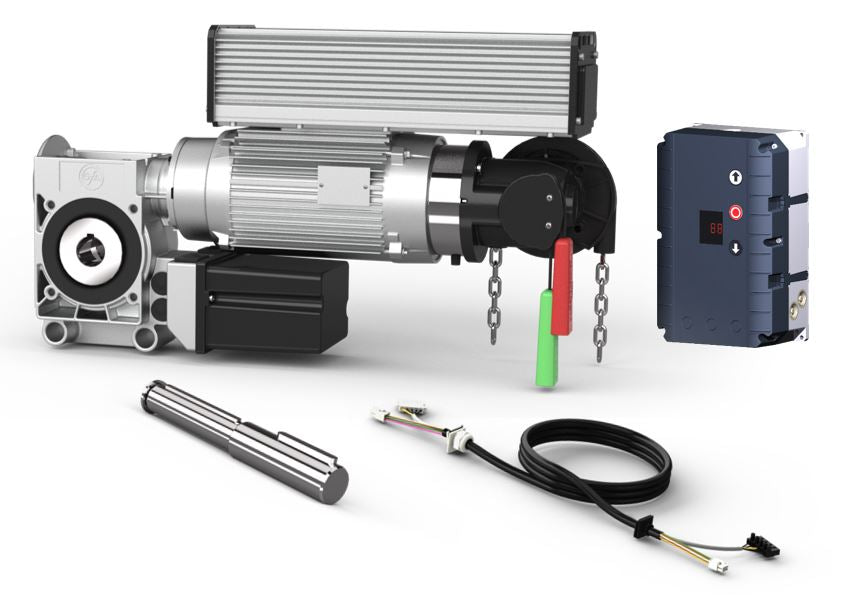

In The Box

1 x KE 17.60 Operator
1 x Output Shaft Ø: 31.75 mm (h9 F7), key 8 wide x 7 high
1 x 5m Digital Connection Cable
1 x TS 981 Logic Controller / Smoke Baffle
1 x Operator Fastening Kit
1 x Extension - Hauling Chain – 2 m Long (4 m chain) (30004555.00004)
1 x Extension - Hand Chain Activator – 4 m Long (30003965)

Shaft tolerance h9
Suggested sprocket tolerance F7

Support

KE 17.60 FI | Manual – Contact GfA sales@gfaonline.com.au
TS 981 | Manual
