Kit KE 9.24 - TS 971 | 36 m2 - 415V

Part No.


Overview

Balanced Chain Drive | Operator Kit

KE 9.24 / 90 Nm / 24 RPM / 415V / Digital Limits / No Handing
Balanced | Maximum Door Size (m2): 36
Medium Cycle: 20 cycles/hr
Rating IP65*
Controller: TS 971 Logic / Built in receiver

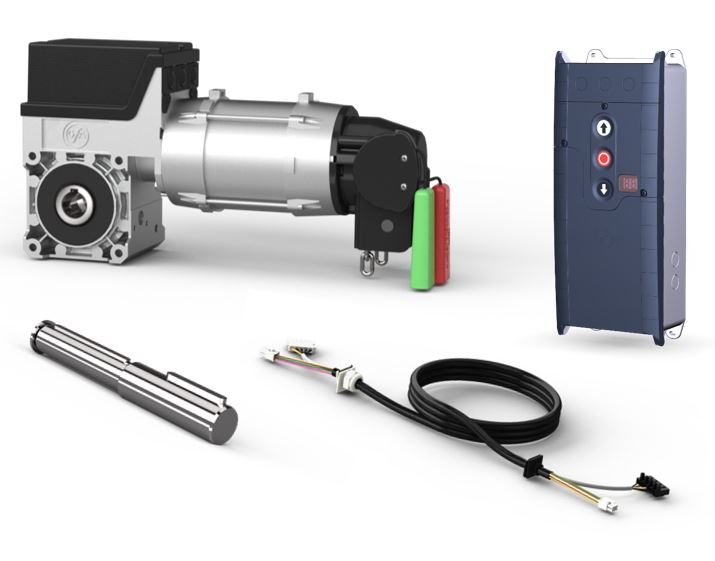

In The Box

1 x KE 9.24 Operator
1 x Output Shaft Ø: 31.75 mm (h9 F7), key 8 wide x 7 high
1 x 5m Digital Connection Cable
1 x TS 971 Logic Controller
1 x Operator Fastening Kit
1 x Extension - Hauling Chain – 2 m Long (4 m chain) (30004555.00004)
1 x Extension - Hand Chain Activator – 4 m Long (30003965)

Shaft tolerance h9
Suggested sprocket tolerance F7

Support

KE 9.24 | Manual
TS 971 | Manual
KE 9.24 | 2D Drawing
