KIT SE 9.24-25,40 SK 415V TS 971 7m

KIT SE 9.24-25,40 SK 415V TS 971 7m

Part No.


Overview

Balanced Sectional Drive | Operator Kit

SE 9.24 / 90 Nm / 24 RPM / 415V / Digital Limits / No Handing
Hollow Shaft Ø: 25.40 mm
Limit Range: 20 Revolutions of the Hollow Shaft
Maximum Door Weight (Kg): 400
Medium Cycle: 20 cycles/hr
Rating IP65*
Controller: TS 971 Logic / Built in receiver

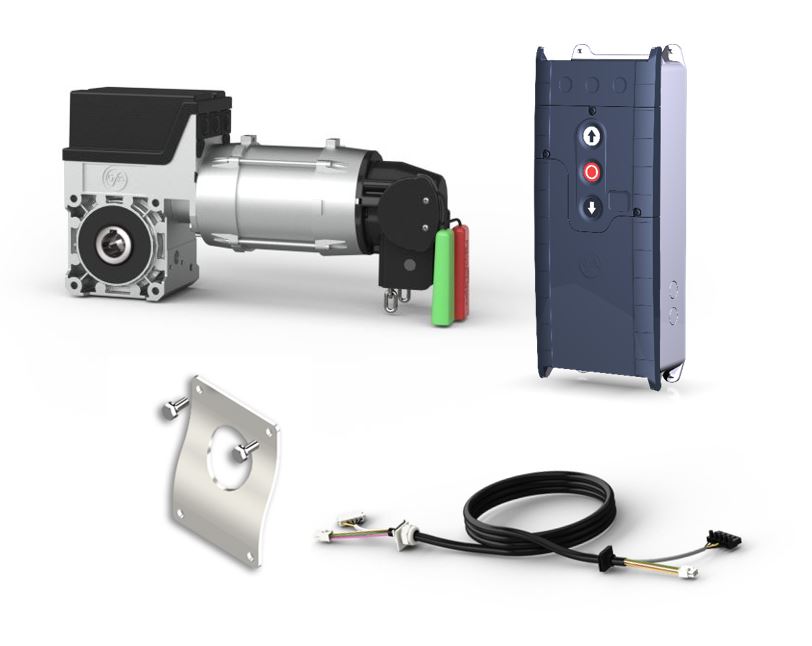

In The Box

1 x SE 9.24 Operator
1 x Steel Key 6.35 x 6.35 x 115 mm
1 x Torque Mount Bracket (30002636)
1 x 7m Digital Connection Cable
1 x TS 971 Logic Controller

Support

SE 9.24 - Manual
TS 971 - Manual
SE 9.24 - 2D Drawing
