KIT KE 9.24 - TS 959 - 3x415V - 36m2
Part No.Overview
Balanced Chain Drive | Operator Kit
KE 9.24 / 90 Nm / 24 RPM / 415V / Digital Limits / No Handing
Balanced | Maximum Door Size (m2): 36
Medium Cycle: 20 cycles/hr
Rating IP65*
Controller: TS 959 Push Button Control

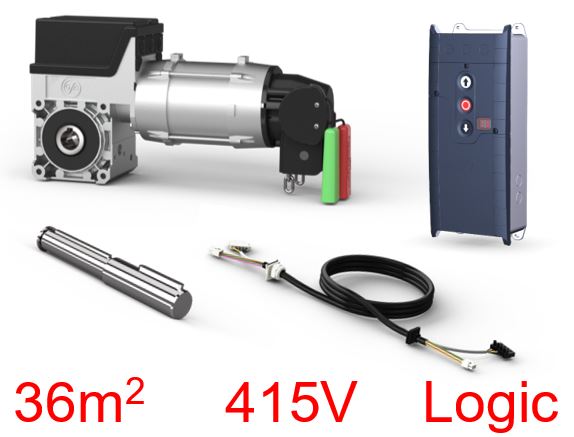

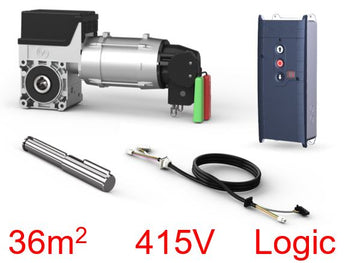

In The Box
1 x KE 9.24 - 415 V
1 x Output Shaft Ø: 31.75 mm (h9 F7), key 8 wide x 7 high
1 x Push Button Control TS 959
1 x Connection Cable 5m DES
1 x Emergency Chain Activator SK/K
1 x Emergency Hand Chain Ext. 4m
1 x Motor Fastening Kit SG 50
Shaft tolerance h9
Suggested sprocket tolerance F7
