KIT KE 75.45-55,00 FI KNH - TS970 - FG 120-50
Part No.Overview
KE 75.45 / 750 Nm / 8 - 45 RPM / 3 x 415V / Soft Start/Stop
Output Shaft Dia: 55 mm
Output Shaft Limit Range 20 Turns
Controller: TS 970 Logic
Safety Brake - FG 120-50
1200 Nm / Locking Torque: 3530Nm
Hollow Shaft Ø 50 mm

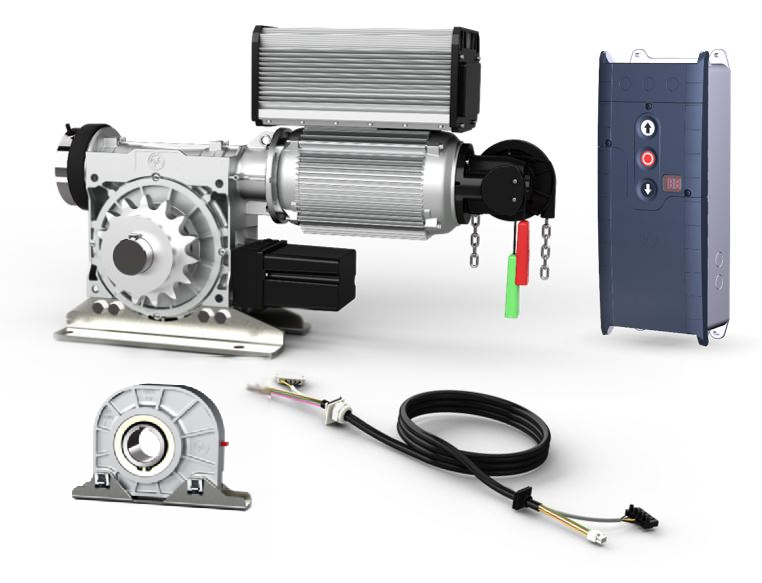

In The Box
1 x KE 75.45-FI, Ø55 mm shaft, Hauling Chain Mechanism, Digital Limits
1 x Output Shaft Ø55,00 mm
1 x TS 970 Logic Control
1 x Connection Cable DES - 7m long
1 x Emergency Activation Extension 4m
1 x Emergency Chain Extension 4m
1 x Safety Brake FG 120-50, Locking Torque 3530 Nm
