KIT KE 40.24 - 20 Limit Range - TS 959 - 3x415V - 80m2
Part No.Overview
Balanced Chain Drive | Operator Kit
KE 40.24 / 400 Nm / 24 RPM / 415V / Digital Limits / No Handing
Balanced | Maximum Door Size (m2): 80
Medium Cycle: 20 cycles/hr
Rating IP65*
Controller: TS 959 Push Button

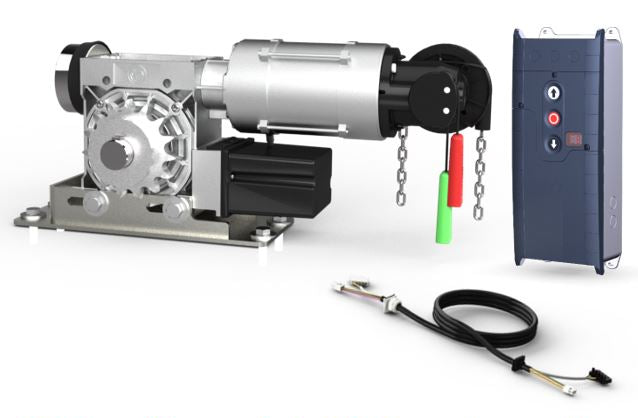

In The Box
1 x KE 40.24 Operator
1 x Output Shaft Ø: 40.00 mm
1 x 5m Digital Connection Cable
1 x TS 959 Logic Controller
2 x Extension - Hauling Chain – 2 m Long (4 m chain) (30004555.00004)
2 x Extension - Hand Chain Activator – 4 m Long (30003965)
