KIT KE 17.60-25,40 FI TS970 - FG 80-40

KIT KE 17.60-25,40 FI TS970 - FG 80-40

Part No.


Overview

Chain Drive | Operator Kit

KE 17.60 / 170 Nm / 60 RPM / 240V or 415V+N / Digital Limits / Soft Start/Stop / No Handing
Output Shaft Dia: 25.4mm
Limit Range: 20 Revolutions of the Hollow Shaft
Rating IP65


Controller: TS 970 Logic
Safety Brake FG 80-40

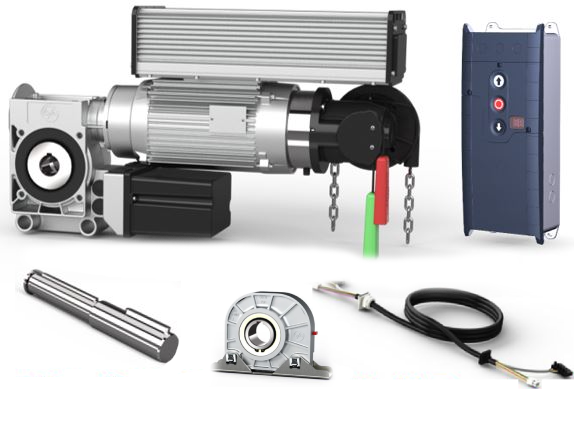

In The Box

 1 x SI 17.60-FI, Ø25.40 mm shaft, Hauling Chain Mechanism, Digital Limits, E20
 1 x Output Shaft Ø: 31.75 mm (h9 F7), key 8 wide x 7 high
 1 x TS 970 Logic Control
 1 x Connection Cable DES - 5m long
 1 x Emergency Activation Extension
 1 x Emergency Chain Extension 4m
 1 x Safety Brake FG 80-40

 Shaft tolerance h9
Suggested sprocket tolerance F7

Support

KE 17.60 FI | Manual – Contact GfA sales@gfaonline.com.au
TS 971 | Manual
