KIT KE 120.24-55,00 TS 959 - FG 360-80

Part No.

Overview

Balanced Chain Drive | Operator Kit

KE 120.24 / 1200 Nm / 24 RPM / 415V / Digital Limits / No Handing
Balanced | Maximum Door Size (m2): 150
High Cycle: 5 cycles/hr
Rating IP65*
Controller: TS 959 Push Button Control
Safety Brake FG 360-80, 3600 Nm, Hollow Shaft Ø80mm

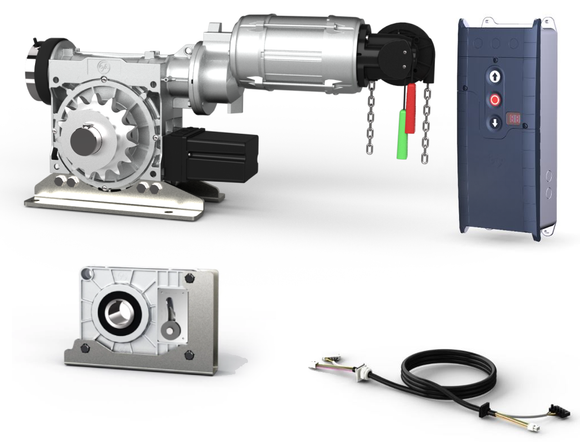

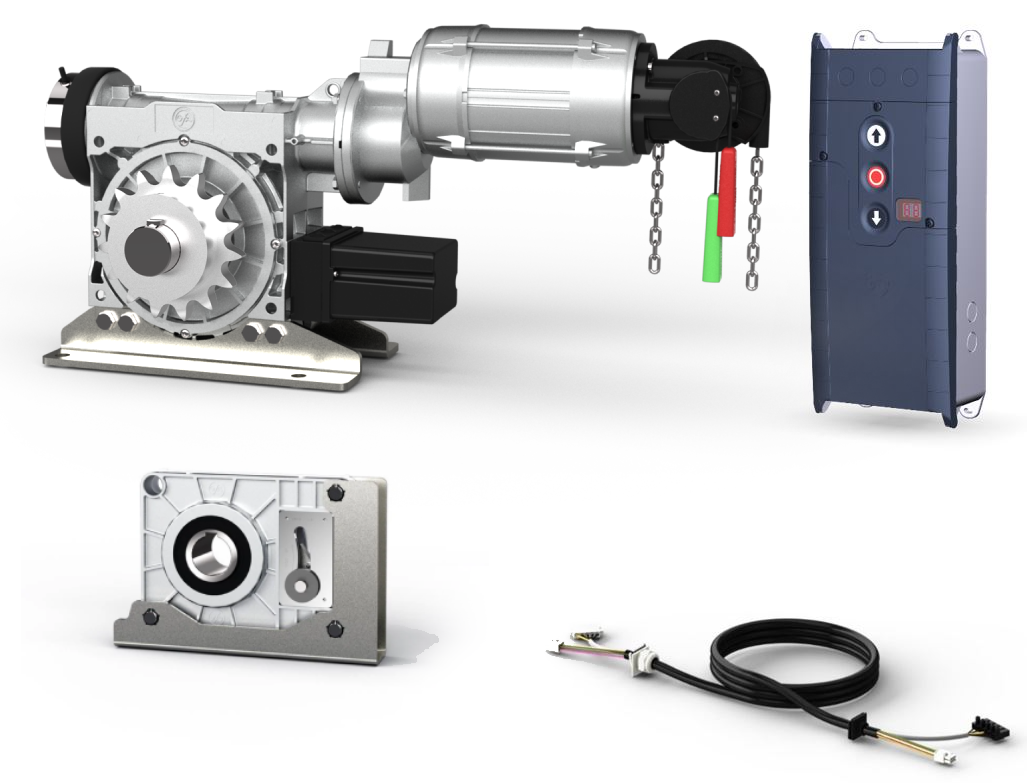

In The Box

1 x KE 120.24 Operator
1 x Output Shaft Ø: 55.00 mm1 x 15m Digital Connection Cable
1 x TS 959 Logic Controller
1 x Connection Cable DES - 9 m long
3 x Extension - Hauling Chain – 2 m Long (4 m chain) (30004555.00004)
2 x Extension - Hand Chain Activator – 4 m Long (30003965)
1 x Safety Brake FG 360-80; 3600 Nm, Hollow Shaft Ø80mm
