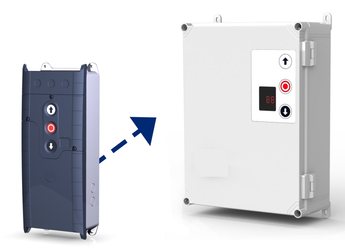

Kit Controller Upgrade TS971 1000 mA -> TS971 XL 1000mA w/o Isolator
Part No.Overview
Kit Controller Upgrade TS971 1000 mA -> TS971 XL 1000mA w/o Isolator

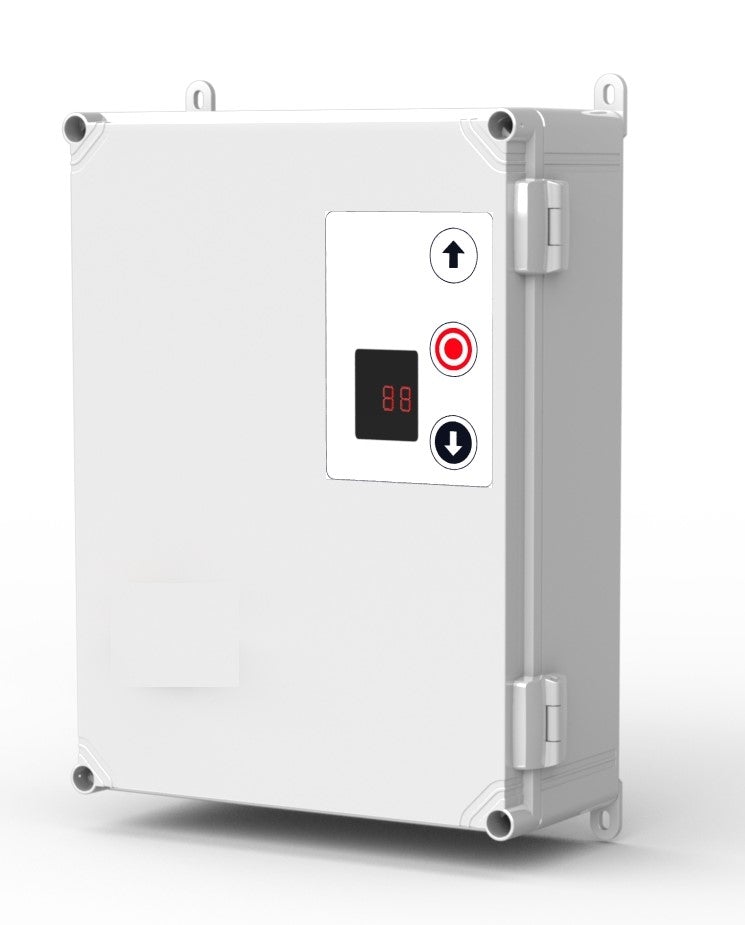

Control Panel TS 971 XL - without Main Switch
Suitable for Digital (DES) and Mechanical (NES) Limit Switches
• UP to 3.0 kW Motor Power
• Protection Class IP65 with Direct Connection
• Supply voltage: 1x230V/N/PE; 3x230V/PE; 3x415V/N/PE; 3x415V/PE
• Dimensions: W x H x D [mm]: 300 x 400 x 132 (165)
• Enclosure housing: plastic
• 2 relay contacts
• External supply 1 A @ 24 V DC and 1.6 amps at 240 V AC
• Integrated radio receiver
- WSD (Wireless Safety Device) 2.4 GHz
- Handheld transmitter / remote 434 MHz
Can only be purchased with a compatible kit
