KE 8.60 - 25,40 - TS 971 - 5m
Part No.Overview
Balanced Chain Drive | Operator Kit
KE 8.60 / 80 Nm / 60 RPM / 240V or 415V+N / Digital Limits / Soft Start/Stop / No Handing
Balanced | Maximum Door Size (m2): 18 | Maximum Door Height 3m - (LR=26)
High Cycle: 30 cycles/hr
Rating IP65*
Controller: TS 971 Logic / Built in receiver

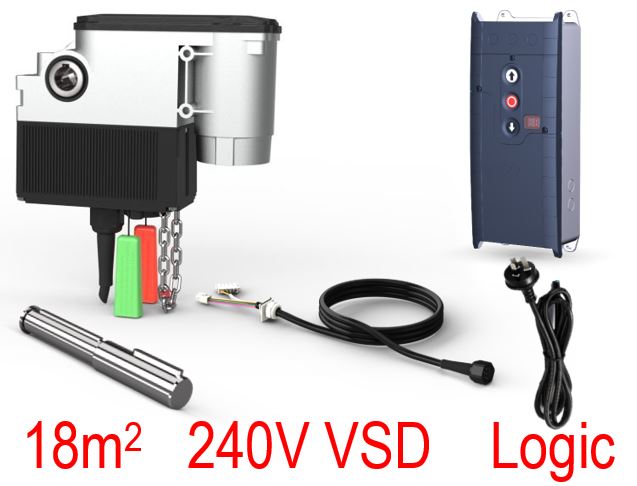

In The Box
1 x KE 8.60 Operator
1 x Output Shaft Ø: 25.40 mm (h9 F7), key 6.35 x 6.35
1 x 7m Digital Connection Cable
1 x TS 971 Logic Controller
1 x 1 x 240V lead 1.5m with 3pin plug
1 x Operator Fastening Kit
1 x Operator mounting bracket
1 x Extension - Hauling Chain – 2 m Long (4 m chain) (30004555.00004)
1 x Extension - Hand Chain Activator – 4 m Long (30003965)
Shaft tolerance h9
Suggested sprocket tolerance F7
