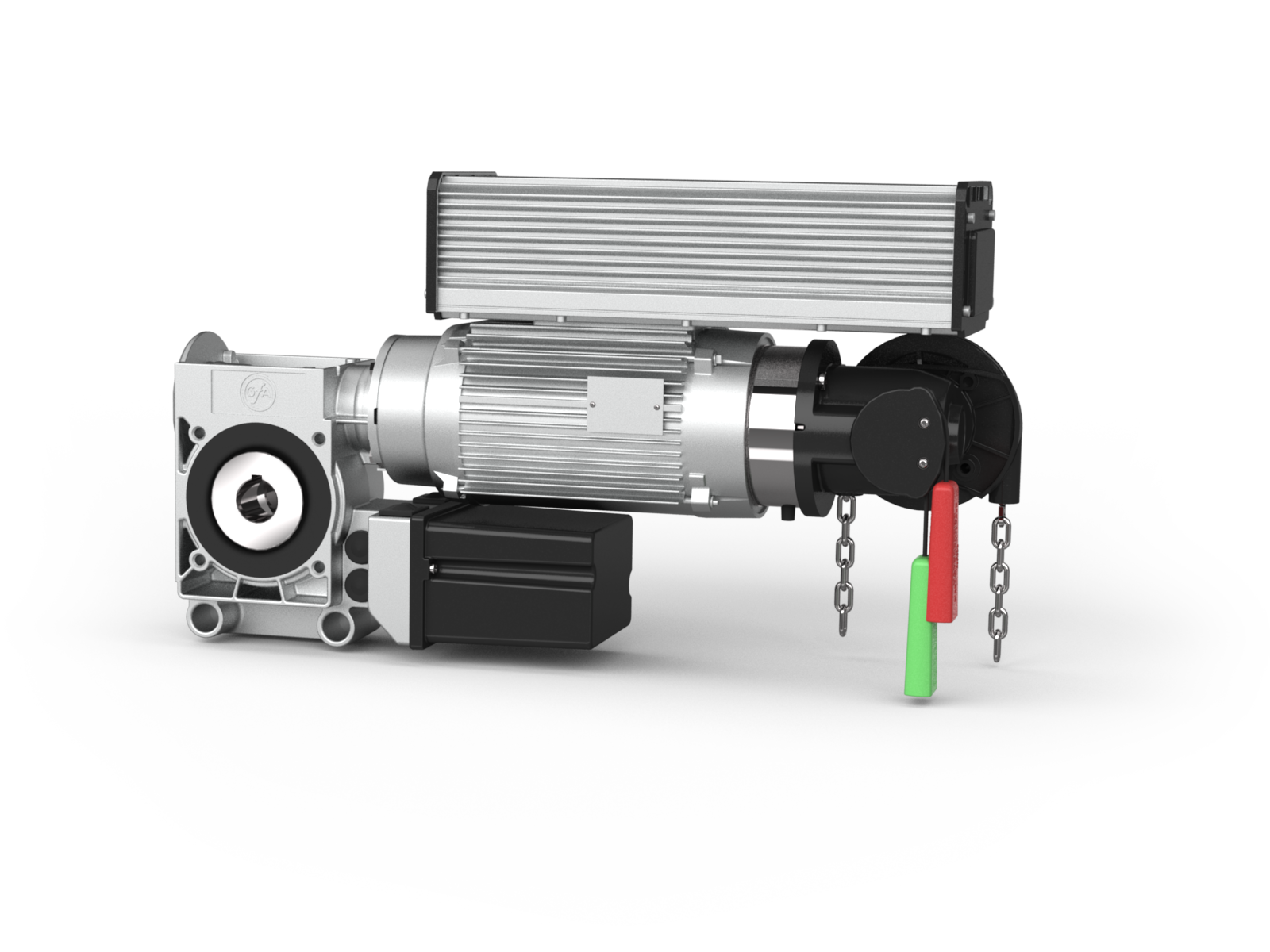

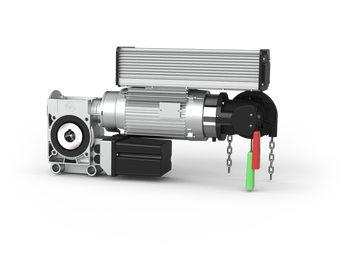

ELEKTROMAT SI63 8.180-30,00 FU-KNH 8xM8 (Set 14402666)

Part No.


Overview

ELEKTROMAT SI63 8.180-30,00 FU
• gear type SG63F
• flange fixing 8xM8
• integrated safety brake with
• output torque 80Nm
• output turns 30-180min-1
• hollow shaft diameter 30mm
• protection class IP65
• temperature range +5°C/+40°C
• supply voltage/frequency FI-motor: 1x230V / 3x400V/N
• max. cycles per hour 59/h
• motor duty cycle S3-60%
• motor power 0,85 kW
• limit switch type/quantity DES (digital limit)
• limit switch range E=20
• emergency operator hand chain operator (1:2)
• chain lengths/crank diameter 4m
• fixing without
• brake motor side electric parking brake 102V
• control version without (motor with frequency inverter)
