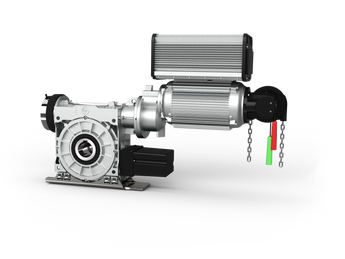

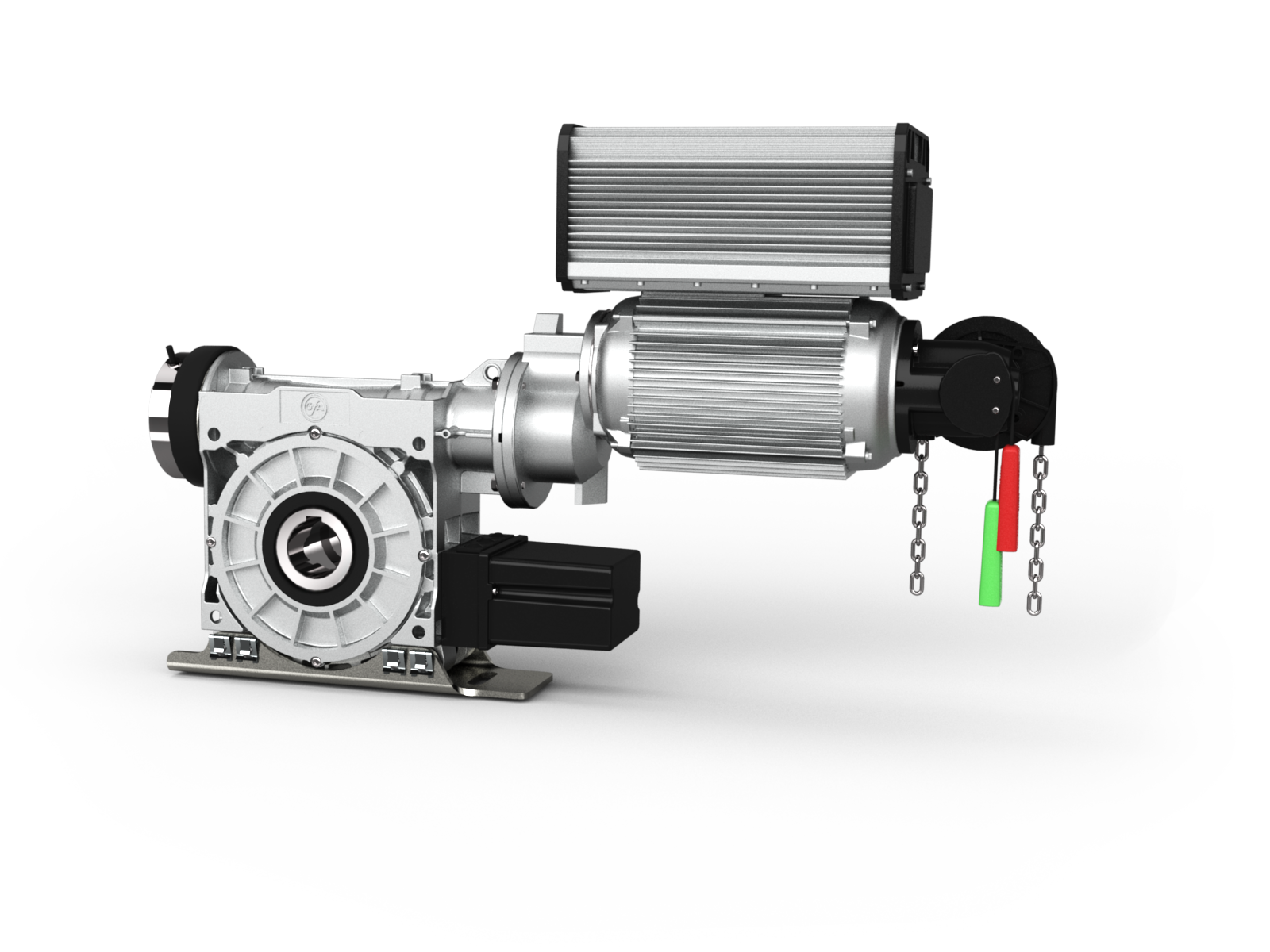

ELEKTROMAT „Safedrive“ SI 140.20-55,00 F
Part No.Overview
ELEKTROMAT “Safedrive“ SI 140.20-55,00 FI
• Integrated Safety Brake
• Output Torque 1400Nm
• Output Speed 5-20 min-1
• Diameter Hollow Shaft 55mm
• Protection Class IP54
• Supply Voltage/ Frequency: 3x415V / 3x415V/N
• Limit Switch/Type DES4
• Limit Switch Range=20
• Hand Chain Operator KNH
• Gear Box Mounting / Floating Foot
• FI Inverter mounted on the Operator (4.5 kW)
**Permitted operator mounting position - horizontal**
In The Box
1 x SI 140.20 Operator
