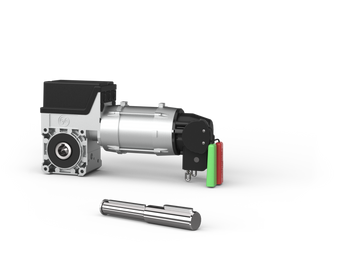

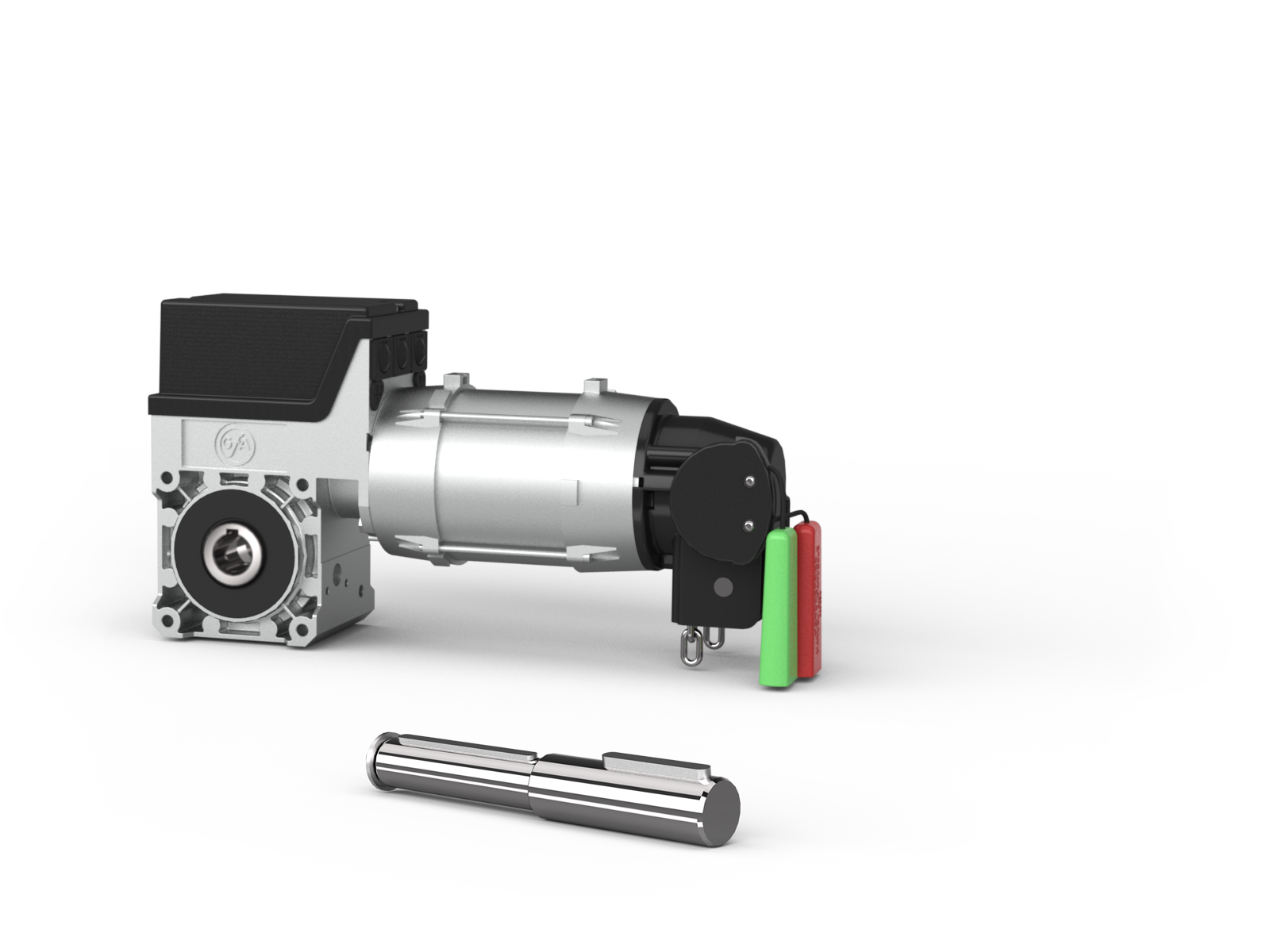

ELEKTROMAT Chain Drive KE 9.24 415 V DES

Part No.


Overview

ELEKTROMAT Chain Drive KE 9.24-25.40/31.75
• Door Size: 40 m2 (balanced doors)
• Output Torque 90 Nm
• Output Speed 24 RPM
• Shaft Diameter 31.75 mm (h9 F7), key 8 wide x 7 high
• Protection Class IP65
• Supply Voltage/ Frequency 3X415V/50Hz
• Limit Switch/Type DES digital
• Limit Switch Range=40
• Emergency Chain Operator SK Chain 4m

Shaft tolerance h9
Suggested sprocket tolerance F7
