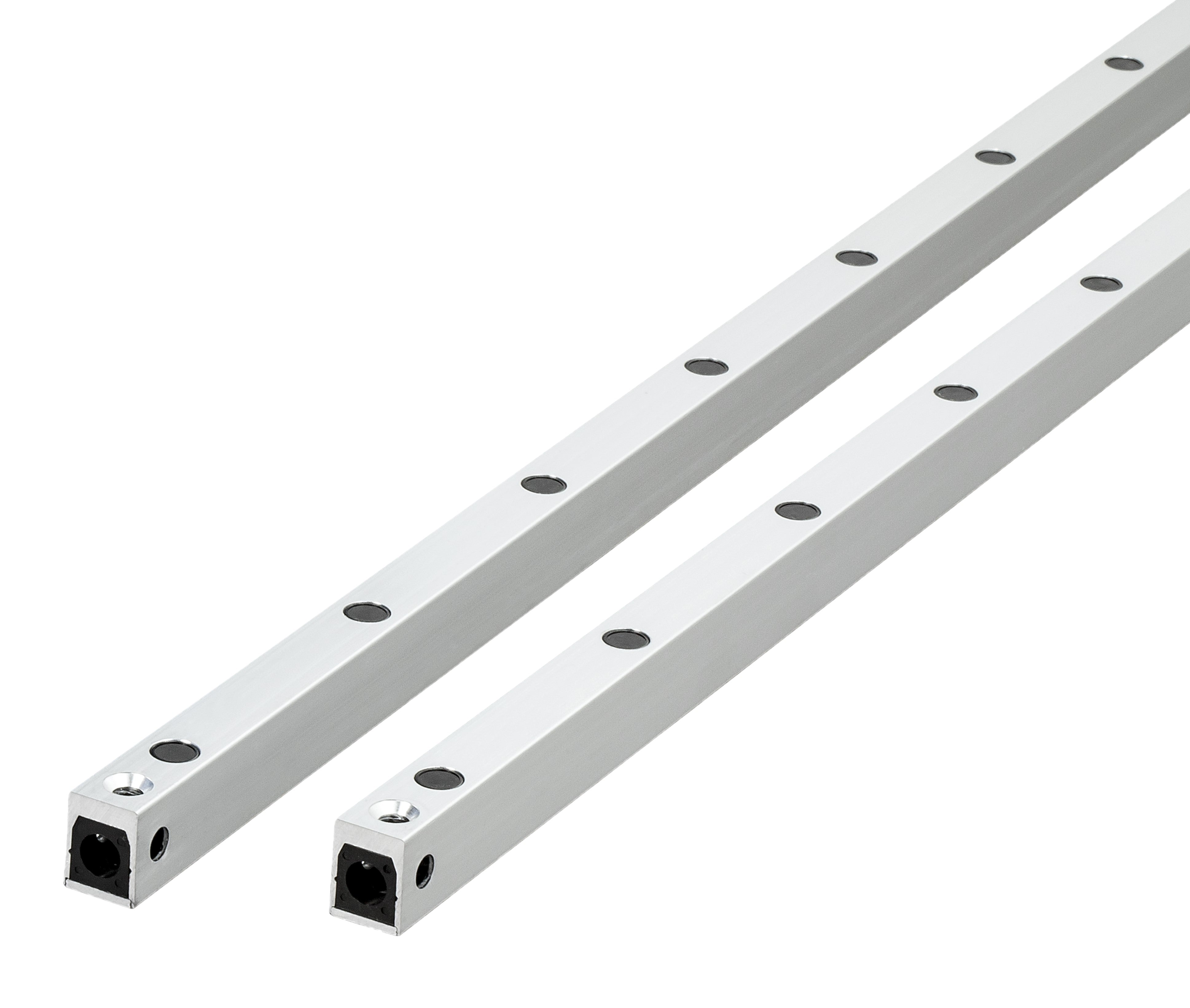

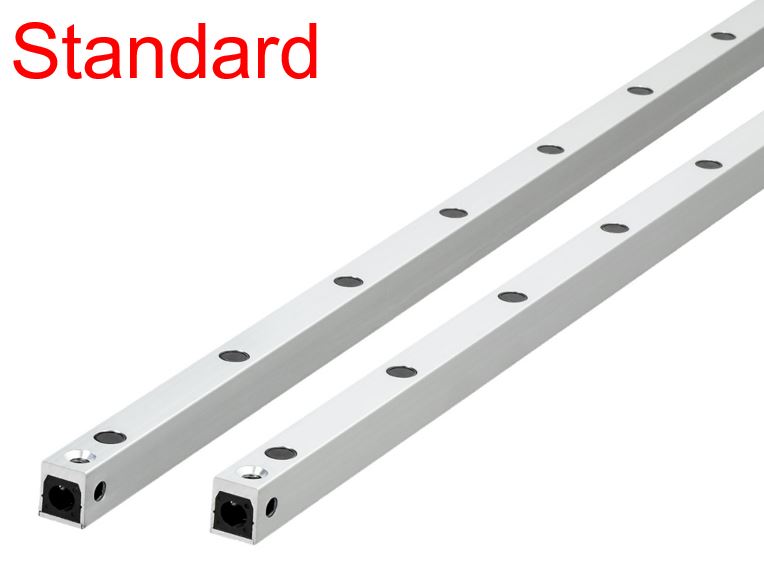

Light Curtain - Std - 20 LED Elements - Signal PNP/NPN - 1830 mm Long

Part No.


Overview

Light Curtain - Std - 20 LED Elements - Signal PNP/NPN - 1830 mm Long

- Monitored Safety Device
- Protection Height: 1600 mm
- Maximum Operating Range 8 m
- Criss Cross Beams Protection
- Resolution: 50 mm up to a height of 500 mm, 185 mm above 500 mm
- Power Consumption: 100 mA
- Compatible with GfA Controller TS 970 (from 2015) and TS 971
- Can be mounted in the Door Guides

Connection:
- Output: Terminal X6
- Testing Function: Relay X20/X21

Warnings
- Do NOT Expose to Moisture/Wet Environments or Direct Sunlight
- Do NOT Mount using bolts that are larger than 4 mm in diameter
- Do NOT connect this unit into the Safety Edge Terminals

In The Box

1 x Sender (Tx)
1 x Receiver (Rx)
1 x 10 m Synchronisation Cable (AU70054)
1 x 5 m Connection Cable (AU70053)
