Part Number: AU51017.10704
Kit FS 15.30-25,00 ASB (New) - FirePro Version 4 - 240V - 7m
Shipping calculated at checkout.
Overview
Fire Shutter | Operator Kit
FS 15.30 / 150 Nm / 30 RPM / 240V / Digital Limits
Balanced | Maximum Door Size (m2): 40
Integrated Auto-Reset Function
Integrated Centrifugal Decent Brake
Brake Voltage 24V DC
Brake Power 16 W
Max Decent Speed 36 rpm
Limit Range: 20 Revolutions of the Output Shaft
Output Shaft Dia: 25 mm
Restoring Torque: 15 Nm
Logic FirePro Controllers / Built in battery back-up (DES) WITH INTEGRATED AUTO-RESET FUNCTION
NOTE:
• Minimum Drive Sprocket: 15 Tooth (NOT included)
• No Emergency Hand Mechanism
*** New gearbox mounting ***

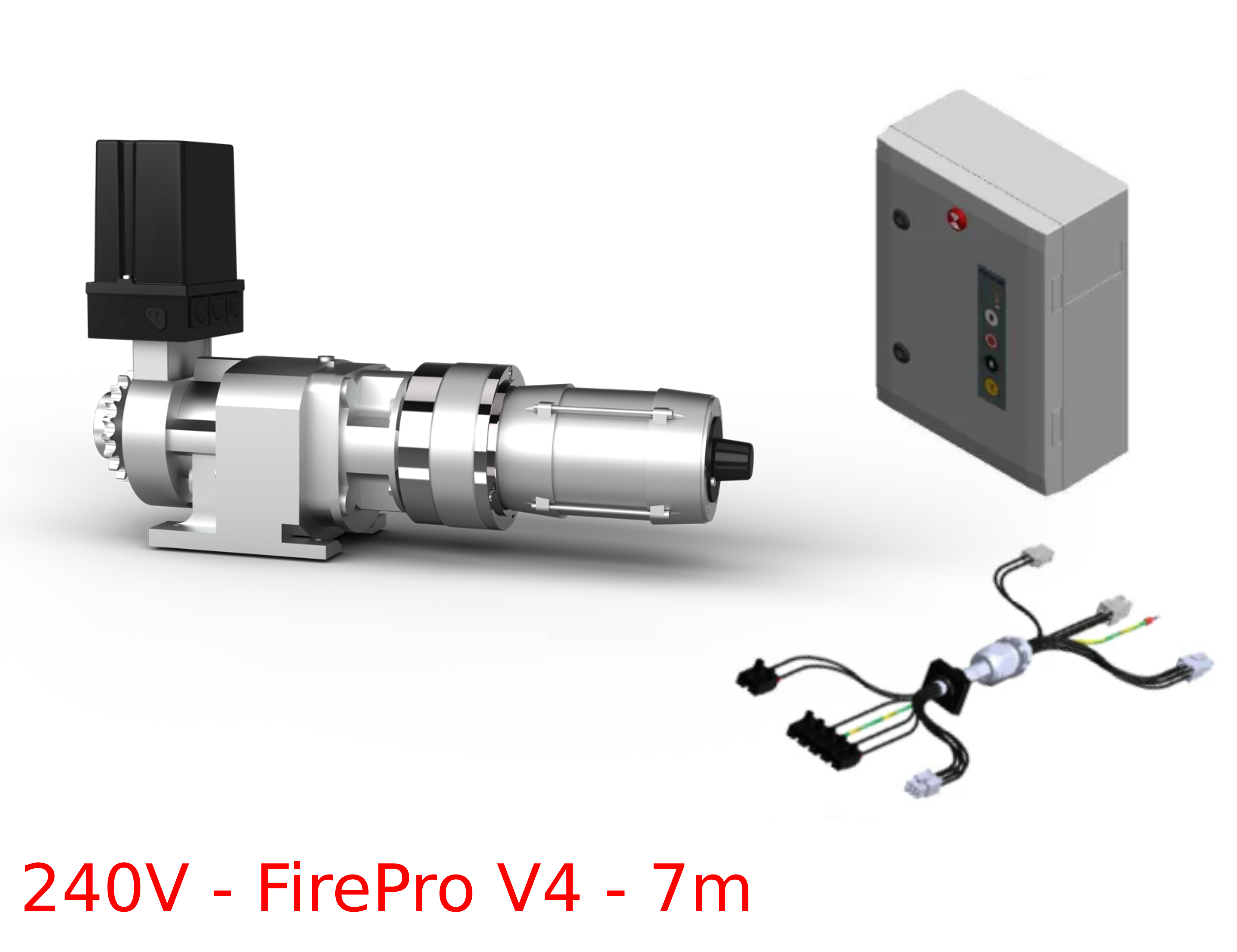

In The Box
1 x FS 15.30, 1 x 240V - DES (New) 10005420.10001
1 x FirePro Controller Version 4 with built-in battery back-up
1 x Connection Cable 7m DES, plugs on both ends
