Kit SE 8.60-VSD - TS 971 | 300 Kg - 240V

Kit SE 8.60-VSD - TS 971 | 300 Kg - 240V

Part No.


Overview

Balanced Sectional Drive | Operator Kit

SE 8.60 / 80 Nm / 60 RPM / 240V or 415V+N / Digital Limits / Soft Start/Stop / No Handing
Hollow Shaft Ø: 25.40 mm
Limit Range: 14 Revolutions of the Hollow Shaft
Maximum Door Weight (Kg): 300
Medium Cycle: 20 cycles/hr
Rating IP65*
Controller: TS 971 Logic / Built in receiver

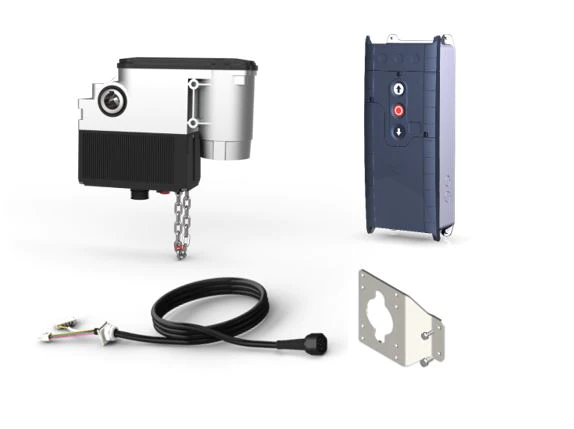

In The Box

1 x SE 8.60 Operator
1 x Steel Key 6.35 x 6.35 x 115 mm
1 x Steel Key 6.35 x 9.525 x 115 mm
1 x SG40 Torque Mount (30005807)
1 x 7m XES Digital Connection Cable
1 x TS 971 Logic Controller

Support

SE 8.60 - Manual
TS 971 - Manual
SE 8.60 - 2D Drawing
