Kit SE 14.80-VSD - TS 981 - Smoke Baffle | 600 Kg - 240V

Kit SE 14.80-VSD - TS 981 - Smoke Baffle | 600 Kg - 240V

Part No.


Overview

Balanced Sectional Drive | Operator Kit

SE 14.80 / 140 Nm / 80 RPM / 240V or 415V+N / Digital Limits / Soft Start/Stop / No Handing
Hollow Shaft Ø: 25.40 mm
Limit Range: 40 Revolutions of the Hollow Shaft
Maximum Door Weight (Kg): 600
High Cycle: 20 cycles/hr
Rating IP65*
Controller: TS 981 Logic / Smoke Baffle

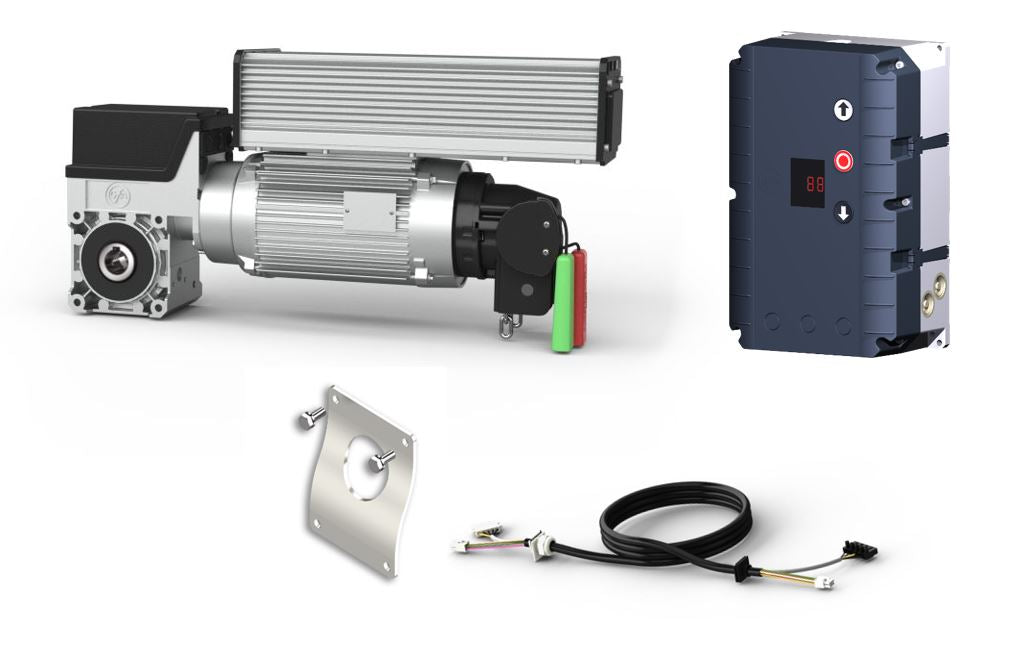

In The Box

1 x SE 14.80 Operator
1 x Steel Key 6.35 x 6.35 x 115 mm
1 x Torque Mount Bracket (30002636)
1 x 5m Digital Connection Cable
1 x TS 981 Logic Controller / Smoke Baffle

Support

SE 14.80 FI - Manual
TS 981 - Manual
SE 14.80 - 2D Drawing
