Kit KE 40.40 - TS 971 - FG 120-50 | 240V

Kit KE 40.40 - TS 971 - FG 120-50 | 240V

Part No.


Overview

KE 40.40 / 400 Nm / 40 RPM / 240V or 415V+N / Soft Start/Stop
Output Shaft Dia: 40 mm
Limit Range: 20 Revolutions of the Hollow Shaft

Controller: TS 971 Logic / Built in receiver

Safety Brake: FG 120-50
Max. Torque 1200 Nm / Locking Torque 3530 Nm
Hollow Shaft Dia: 50 mm

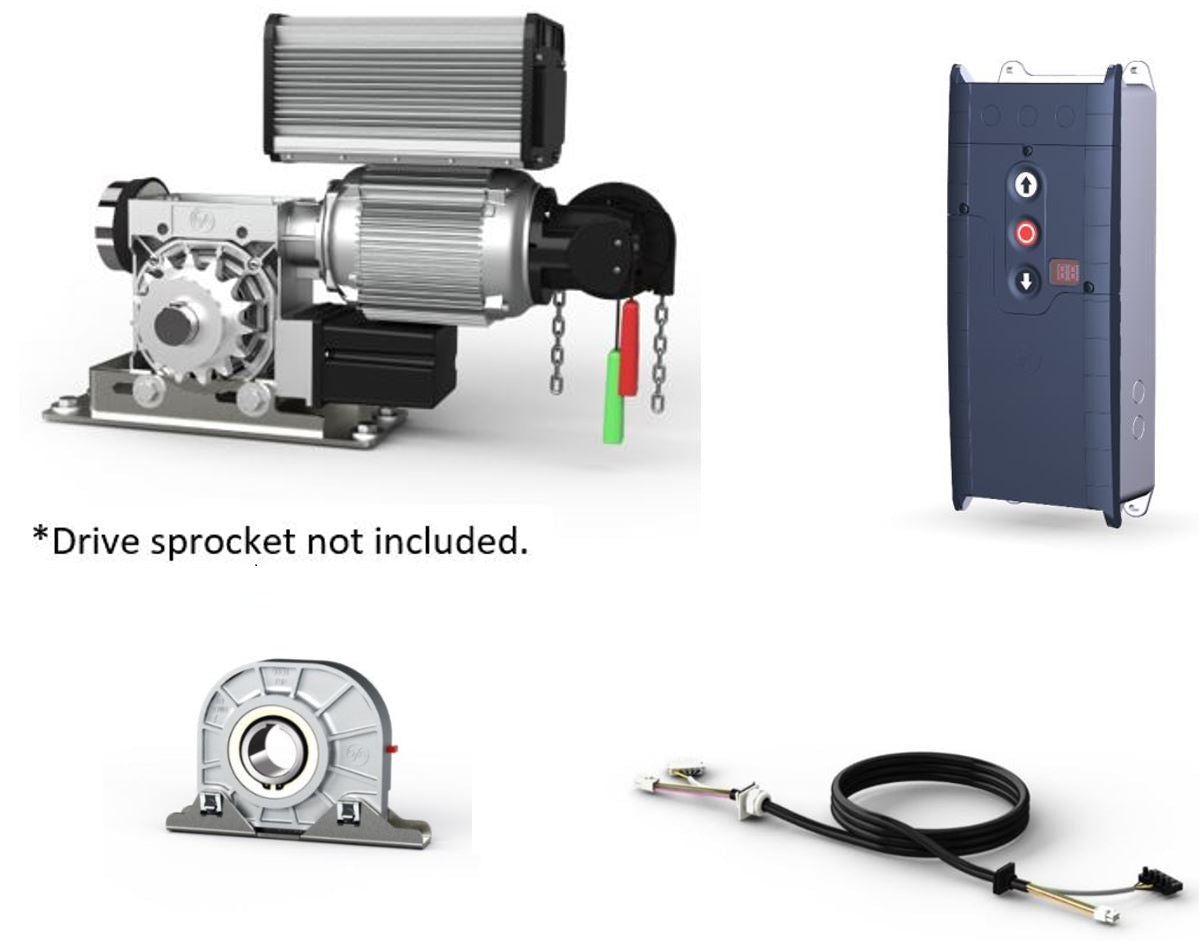

In The Box

1 x KE 40.40 Operator
1 x Output Shaft Dia: 40 mm
1 x Safety Brake FG 120-50
1 x TS 971 Logic Controller
1 x Connection Cable - Digital Limits (DES) - 5 m Long
1 x Extension - Hauling Chain – 2 m Long (4 m chain) (30004555.00004)
1 x Extension - Hand Chain Activator – 4 m Long (30003965)

Support

KE 40.40 | Manual
TS 971 | Manual
FG 120-50 | Manual
KE 40.40 | 2D Drawing
FG 120-50 | 2D Drawing
