Kit KE 50.80 - TS 971 - FG 120-50 | 415V

Kit KE 50.80 - TS 971 - FG 120-50 | 415V

Part No.


Overview

KE 50.80 / 500 Nm / 50 RPM / 415V / Soft Start/Stop
Output Shaft Dia: 55 mm
Limit Range: 20 Revolutions of the Hollow Shaft

Controller: TS 971 Logic / Built in receiver

Safety Brake: FG 120-50
Max. Torque 1200 Nm / Locking Torque 3530 Nm
Hollow Shaft Dia: 50 mm

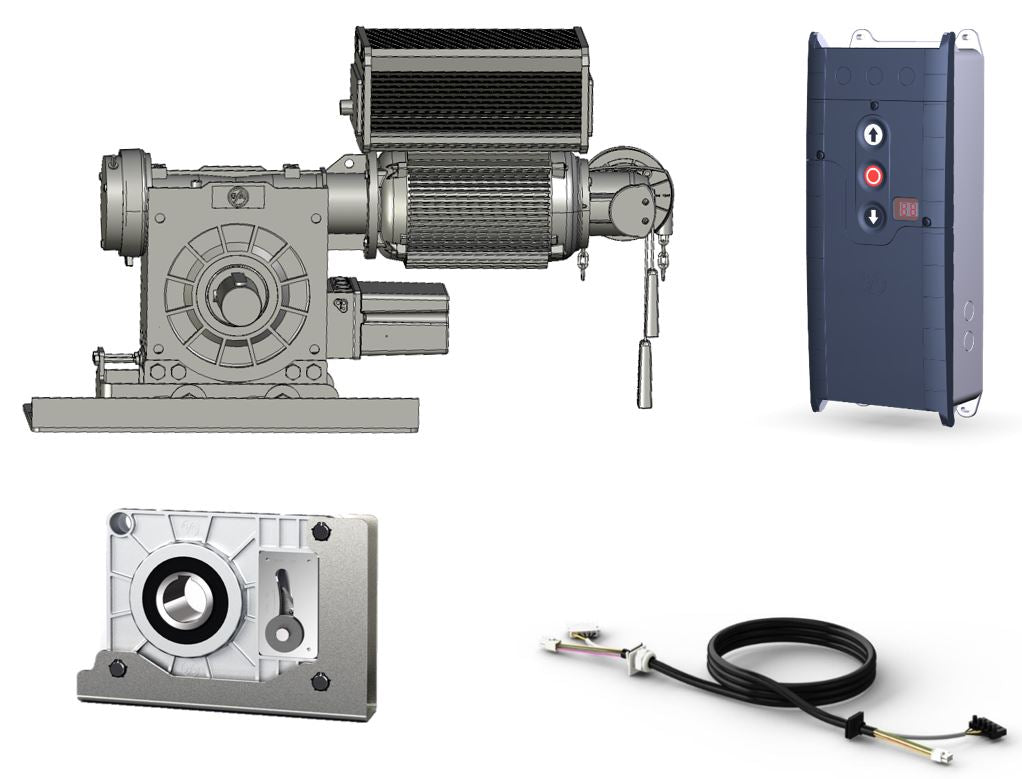

In The Box

1 x KE 50.80 Operator
1 x Output Shaft Dia: 55 mm
1 x Safety Brake FG 120-50
1 x TS 971 Logic Controller
1 x Connection Cable - Digital Limits (DES) - 7 m Long
1 x Extension - Hauling Chain – 2 m Long (4 m chain) (30004555.00004)
1 x Extension - Hand Chain Activator – 4 m Long (30003965)

Support

KE 50.80 FI | Manual – Contact GfA sales@gfaonline.com.au
TS 971 | Manual
FG 120-50 | Manual
FG 120-50 | 2D Drawing
