KIT SI 17.60-25,40 - FI - TS 971 - 5m - 240V - (170Nm)

KIT SI 17.60-25,40 - FI - TS 971 - 5m - 240V - (170Nm)

Part No.


Overview

Safedrive | Operator Kit

SI 17.60 / 170 Nm / 60 RPM / 240V or 415V+N / Soft Start/Stop / No Handing
Hollow Shaft Dia: 25.4 mm
Limit Range: 20 Revolutions of the Hollow Shaft
Lifting Capacity: 135 kg at 168 mm Drum*
Controller: TS 971 Logic / Built in receiver

* The Lifting Capacity is calculated based on 23mm single-wall profile and 20% Friction

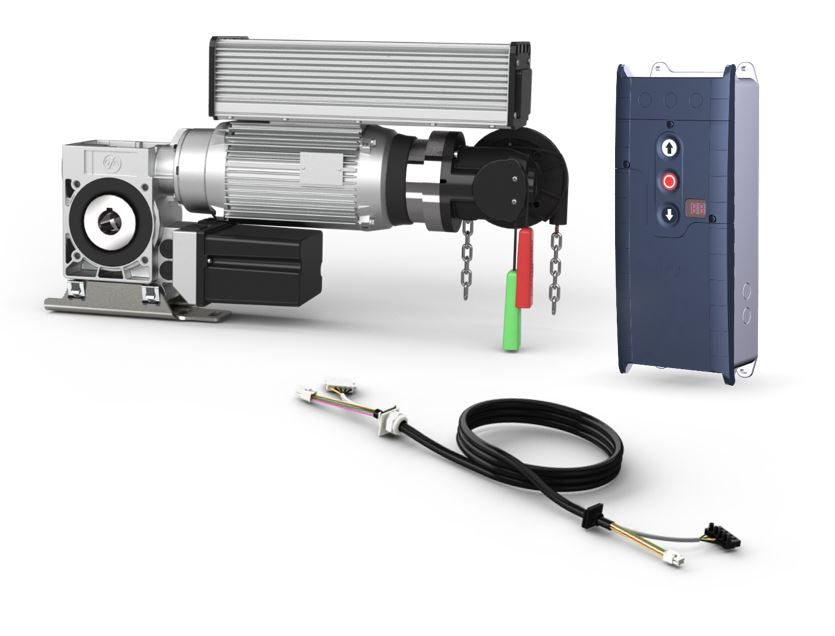

In The Box

1 x SI 17.60 Operator
1 x TS 971 Logic Controller
1 x Connection Cable - Digital Limits (DES) - 5 m Long
1 x Extension - Hauling Chain – 2 m Long (4 m chain) (30004555.00004)
1 x Extension - Hand Chain Activator – 4 m Long (30003965)

Support

SI 17.60 FI | Manual
TS 971 | Manual
SI 17.60 | 2D Drawing
