KIT SIK 25.10-30,00 - KNH - TS 970 - 3 x 415V (250 Nm)
Part No.Overview
Safedrive | Operator Kit
SIK 25.10 / 250 Nm / 10 RPM / 415V+N / No Handing
Hollow Shaft Dia: 30 mm
Limit Range: 10 Revolutions of the Hollow Shaft
Lifting Capacity: 198 kg at 168 mm Drum*
Controller: TS 970 Logic
* The Lifting Capacity is calculated based on 23mm single-wall profile and 20% Friction

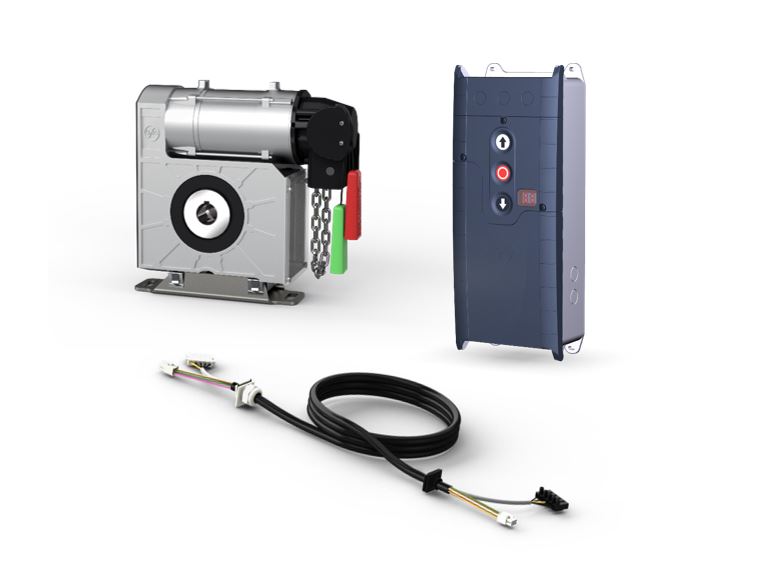

In The Box
1 x SIK 25.10 Operator
1 x TS 970 Logic Controller
1 x Connection Cable - Digital Limits (DES) - 3 m Long
1 x Extension - Hauling Chain – 2 m Long (4 m chain) (30004555.00004)
1 x Extension - Hand Chain Activator – 4 m Long (30003965)
