KIT SI 180.6-60,00 - TS 971 - 7m - 415V - E10 (1800 Nm)

KIT SI 180.6-60,00 - TS 971 - 7m - 415V - E10 (1800 Nm)

Part No.


Overview

Safedrive | Operator Kit

SI 180.6 / 1800 Nm / 6 RPM / 415V+N / No Handing
Hollow Shaft Dia: 60 mm
Limit Range: 10 Revolutions of the Hollow Shaft (used to be 20)
Lifting Capacity: 1429 kg at 168 mm Drum* / 1154 kg at 219 mm Drum*
Controller: TS 971 Logic / Built in receiver

* The Lifting Capacity is calculated based on 23mm single-wall profile and 20% Friction

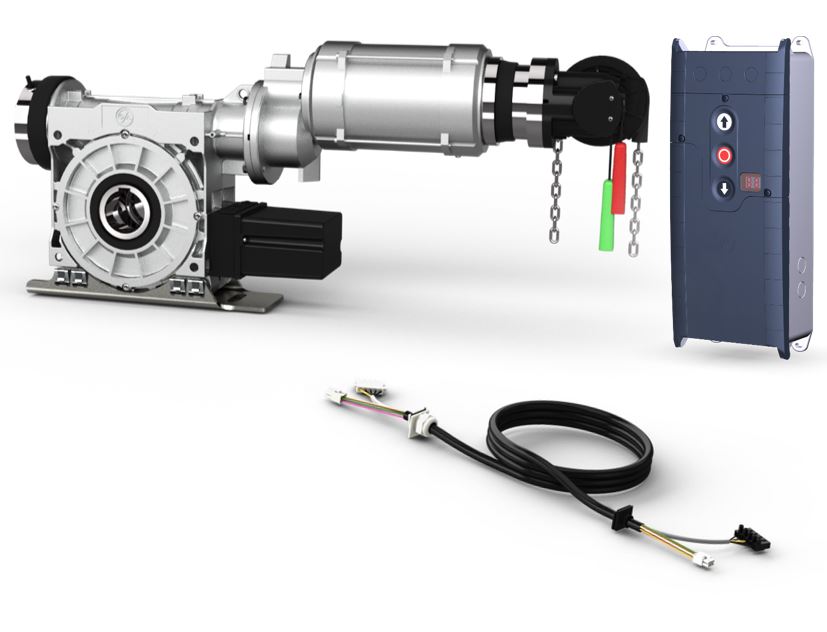

In The Box

1 x SI 180.6 Operator
1 x TS 971 Logic Controller
1 x Connection Cable - Digital Limits (DES) - 7 m Long
1 x Extension - Hauling Chain – 2 m Long (4 m chain) (30004555.00004)
1 x Extension - Hand Chain Activator – 4 m Long (30003965)

Support

SI 180.6 | Manual
TS 971 | Manual
SI 180.6 | 2D Drawing
