KIT SI 100.10-55,00 - TS 971 - 5m - 415V - (1000 Nm)

KIT SI 100.10-55,00 - TS 971 - 5m - 415V - (1000 Nm)

Part No.


Overview

Safedrive | Operator Kit

SI 100.10 / 1000 Nm / 10 RPM / 415V+N / No Handing
Hollow Shaft Dia: 55 mm
Limit Range: 20 Revolutions of the Hollow Shaft
Lifting Capacity: 794 kg at 168 mm Drum* / 641 kg at 219 mm Drum*
Controller: TS 971 Logic

* The Lifting Capacity is calculated based on 23mm single-wall profile and 20% Friction

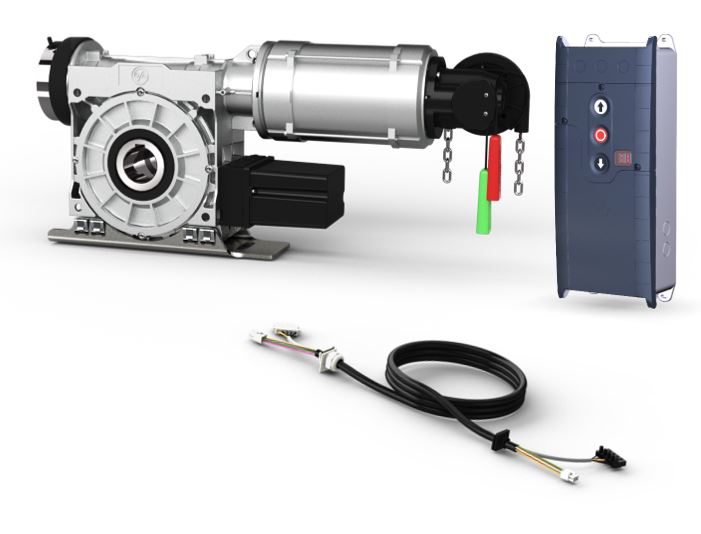

In The Box

1 x SI 100.10 Operator
1 x TS 970 Logic Controller
1 x Connection Cable - Digital Limits (DES) - 5 m Long
1 x Extension - Hauling Chain – 2 m Long (4 m chain) (30004555.00004)
1 x Extension - Hand Chain Activator – 4 m Long (30003965)

Support

SI 100.10 | Manual
TS 970 | Manual
SI 100.10 | 2D Drawing
