Part Number: 10005392.10002
FS 25.20-30,00: ASB
Shipping calculated at checkout.
Overview

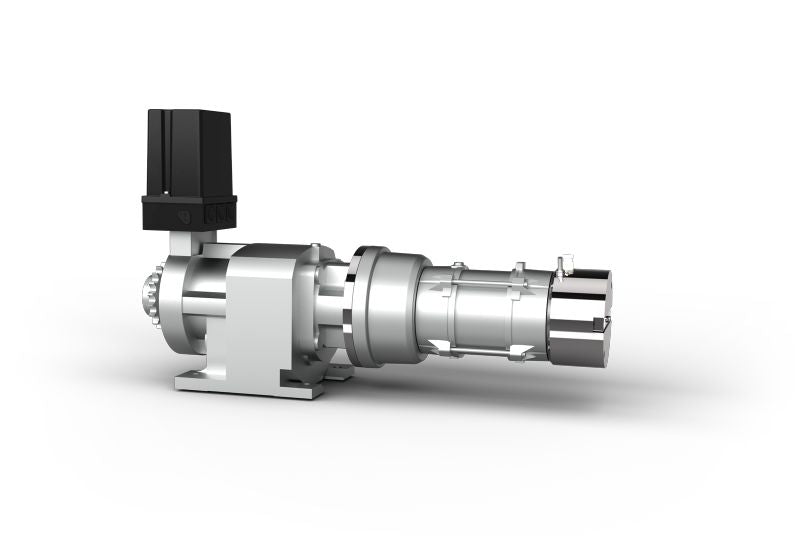

Fire Shutter | Operator
FS 25.20 / 250 Nm / 20 RPM / 415V+N / Digital Limits
Balanced | Maximum Door Size (m2): 50
Integrated Auto-Reset Function
Integrated Centrifugal Decent Brake
Brake Voltage 24V DC
Brake Power 24 W
Limit Range: 20 Revolutions of the Output Shaft
Output Shaft Dia: 30 mm
Restoring Torque: 20 Nm
NOTE:
• Minimum Drive Sprocket: 15 Tooth (NOT included)
• No Emergency Hand Mechanism
*** New gearbox mounting ***
In The Box
1 x FS 25.20-30,00 DES - 3 x 415V (New) 10005392.10002
