Overview

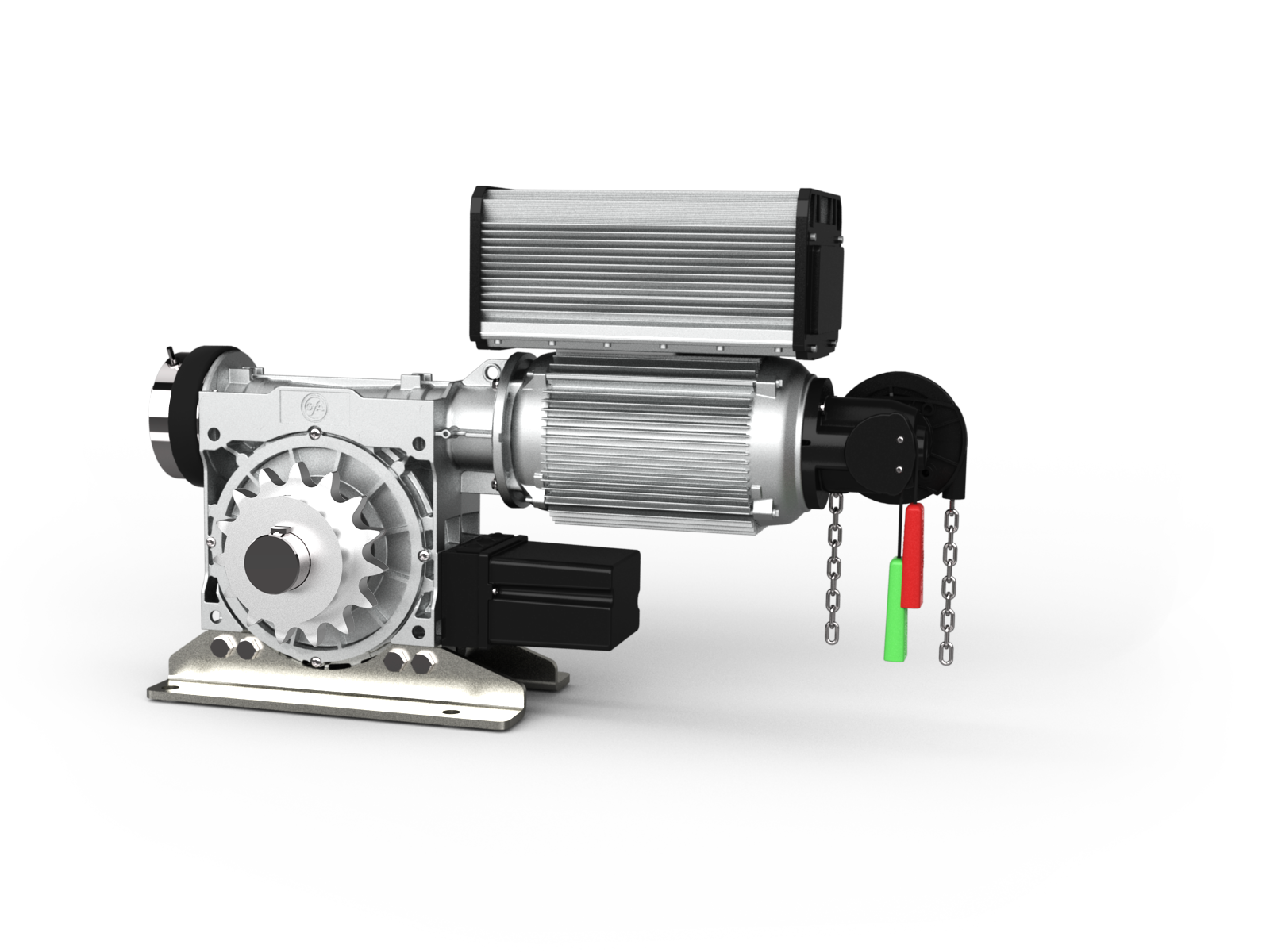

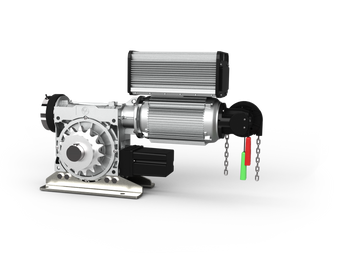

SI-KE 50.80-55,00 Fi
• integrated safety brake with
• output torque 500Nm
• output turns 22-80min-1
• hollow shaft diameter 55mm
• gearbox output shaft diameter 55 mm
• protection class IP65
• temperature range +5°C/+40°C
• approval SI for KE-ELEKTROMAT
• supply voltage/frequency FI-motor: 3x400V / 3x400V/N
• max. cycles per hour 26/h
• motor duty cycle S3-60%
• motor power 4,5 kW
• limit switch type/quantity DES (digital limit)
• limit switch range E=20
• emergency operator hand chain operator (1:4,5)
• chain lengths/crank diameter 7m
•  Motor Console SG 115, with Sliding Rail
• brake gear side electric parking brake 178V
• control version without (motor with frequency inverter)
