ELEKTROMAT „Safedrive“SI 40.15-40,00 - Car-Park - KNH

ELEKTROMAT „Safedrive“SI 40.15-40,00 - Car-Park - KNH

Part No.


Overview

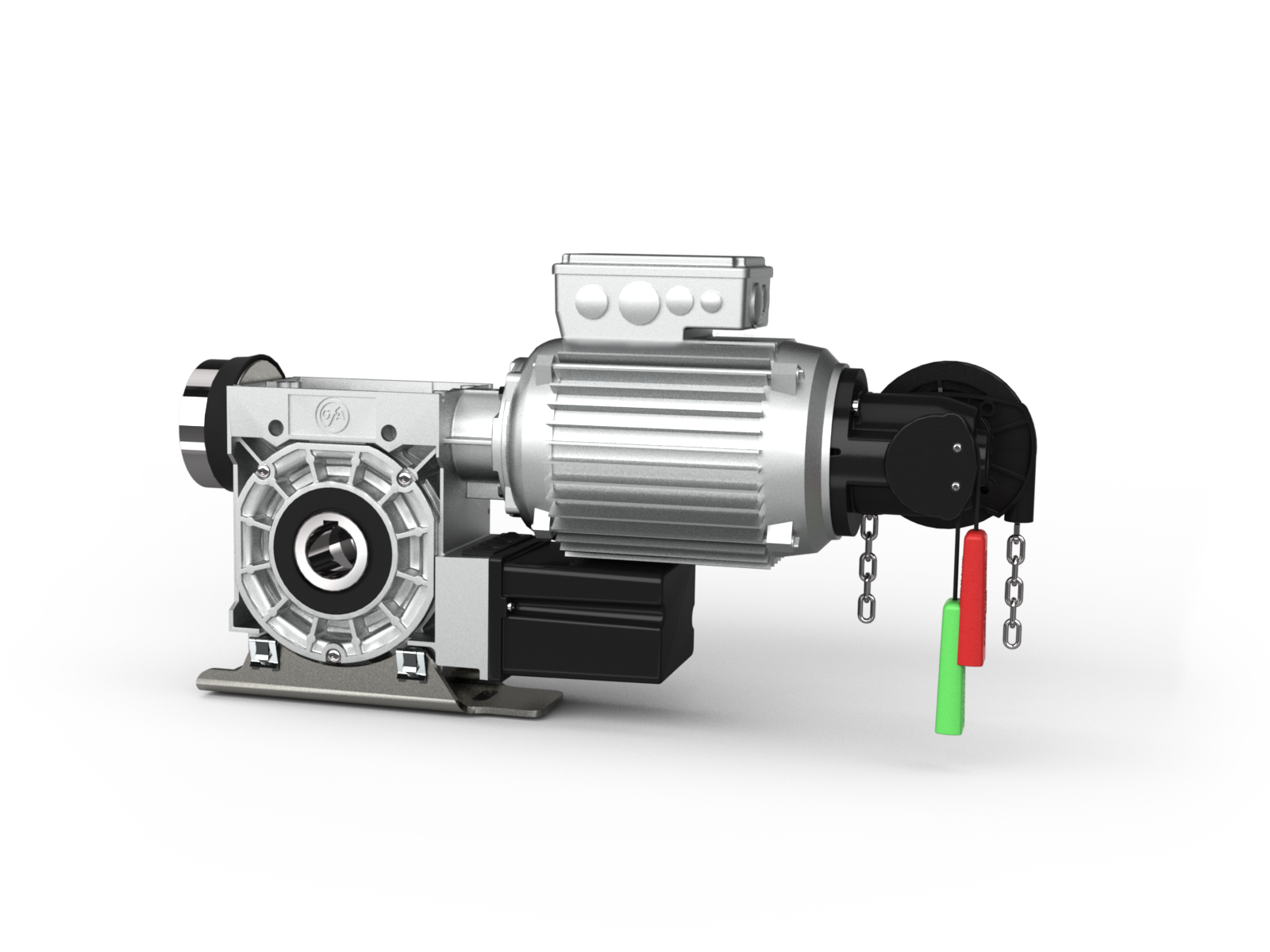

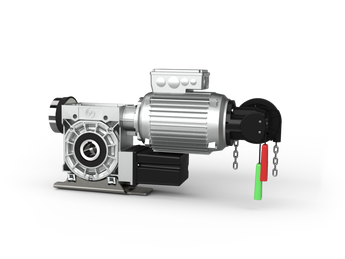

ELEKTROMAT "Safedrive" SI 40.15-40,00 Car-Park with Brake
• Special Gear Box with Ventilation
• Integrated Safety Brake
• Output Torque 400 Nm
• Output Speed 15 min-1
• Diameter Hollow Shaft 40mm
• Protection Class IP54
• Duty Rating Motor S1-100%
• Supply Voltage/ Frequency 3X415V/N/50Hz
• Limit Switch/Type DES
• Limit Switch Range=20
• Hand Chain Operator KNH
• Gear Box Mounting /Floating Foot

In The Box

1 x SI 40.15-HC Operator

Support

SI 40.15-HC | Manual
SI 40.15-HC | 2D Drawing
