FS 15.20-25,00-ASB 415 V: Auto Reset
Part No.Overview

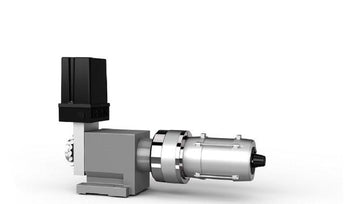

Fire Shutter | Operator
FS 15.20 / 150 Nm / 20 RPM / 415V+N / Digital Limits
Balanced | Maximum Door Size (m2): 40
Integrated Auto-Reset Function
Integrated Centrifugal Decent Brake
Brake Voltage 24V DC
Brake Power 16 W
Max Decent Speed 23 rpm
Limit Range: 20 Revolutions of the Output Shaft
Output Shaft Dia: 25 mm
Restoring Torque: 15 Nm
NOTE:
• Minimum Drive Sprocket: 15 Tooth (NOT included)
• No Emergency Hand Mechanism
In The Box
1 x FS 15.20 Operator
