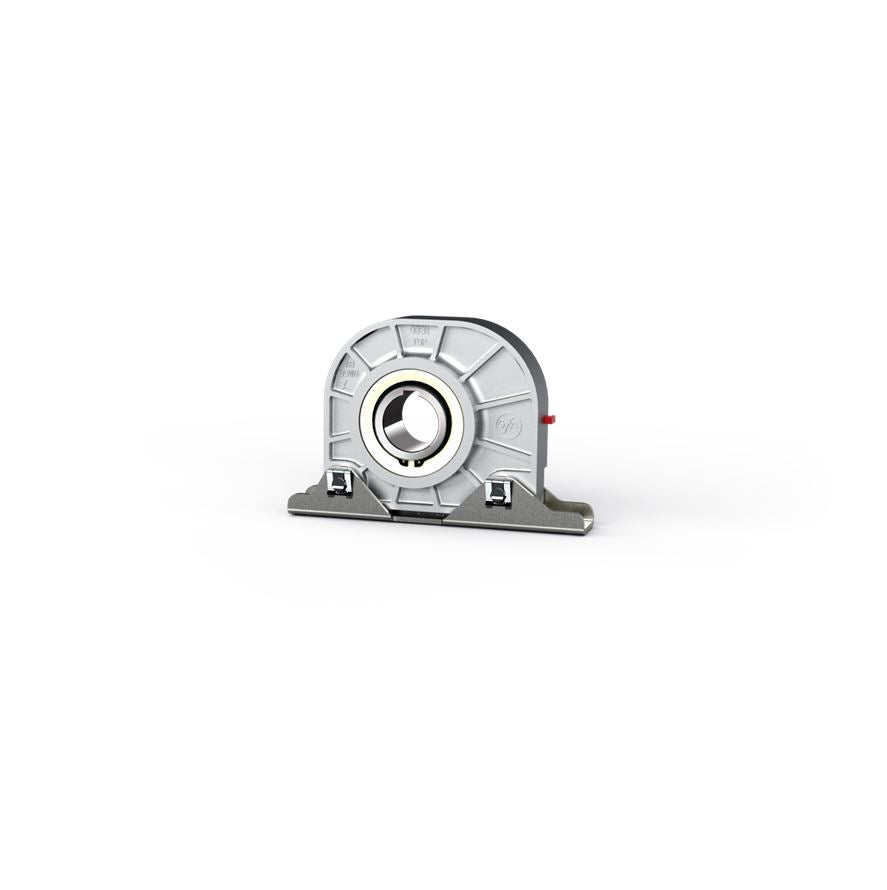

Safety Brake - FG 40-30

Safety Brake - FG 40-30

Part No.


Overview

Safety Brake - FG 40-30
Max Torque: 400 Nm
Hollow Shaft Dia: 30 mm
Max. Operating Speed: 24 RPM
Locking Torque: 1150 Nm
Weight: 4.1 Kg
Protection Class: IP65
Temperature Range: -20/+60 Celsius
Certificate of conformity according to DIN EN 12604 / 12605
Cautions:
- Permissible Installation Position: Horizontal ONLY
- Dependent on the direction of rotation
