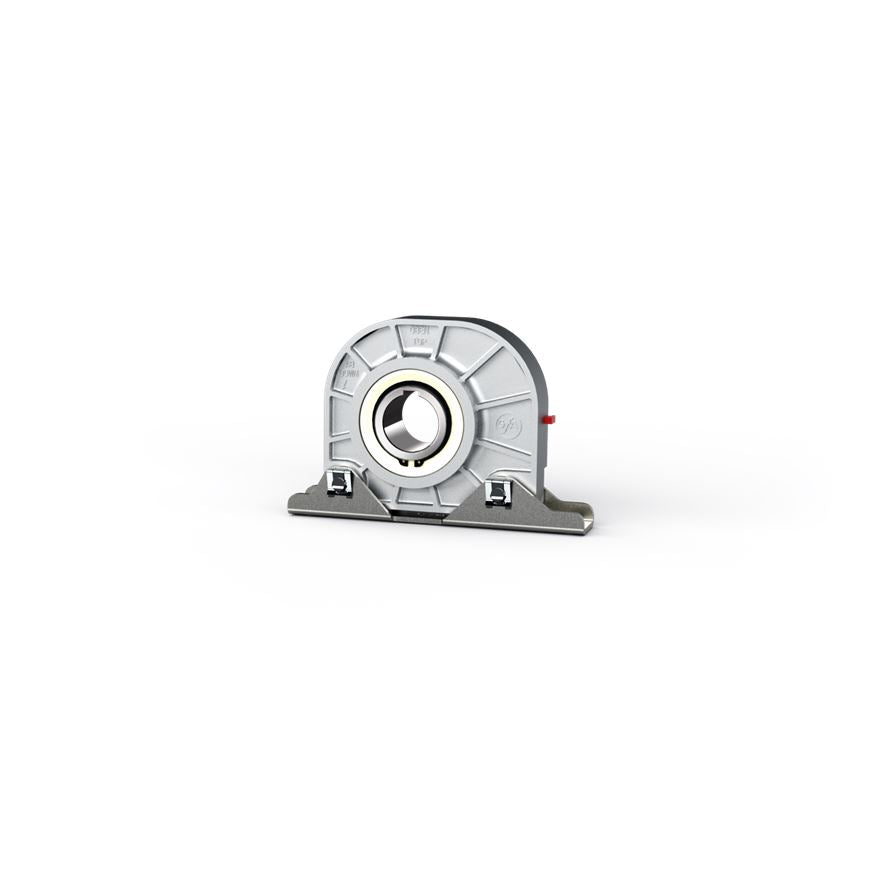

Safety Brake - FG 120-50

Safety Brake - FG 120-50

Part No.


Overview

Safety Brake - FG 120-50
Max Torque:1200 Nm
Hollow Shaft Dia: 50 mm
Max. Operating Speed: 24 RPM
Locking Torque: 3530 Nm
Weight: 3.9 Kg
Protection Class: IP65
Temperature Range: -20/+60 Celsius
Certificate of conformity according to DIN EN 12604 / 12605
Cautions:
- Permissible Installation Position: Horizontal ONLY
- Dependent on the direction of rotation

Support

FG 120-50 | Manual

FG 120-50 | 2D Drawing
