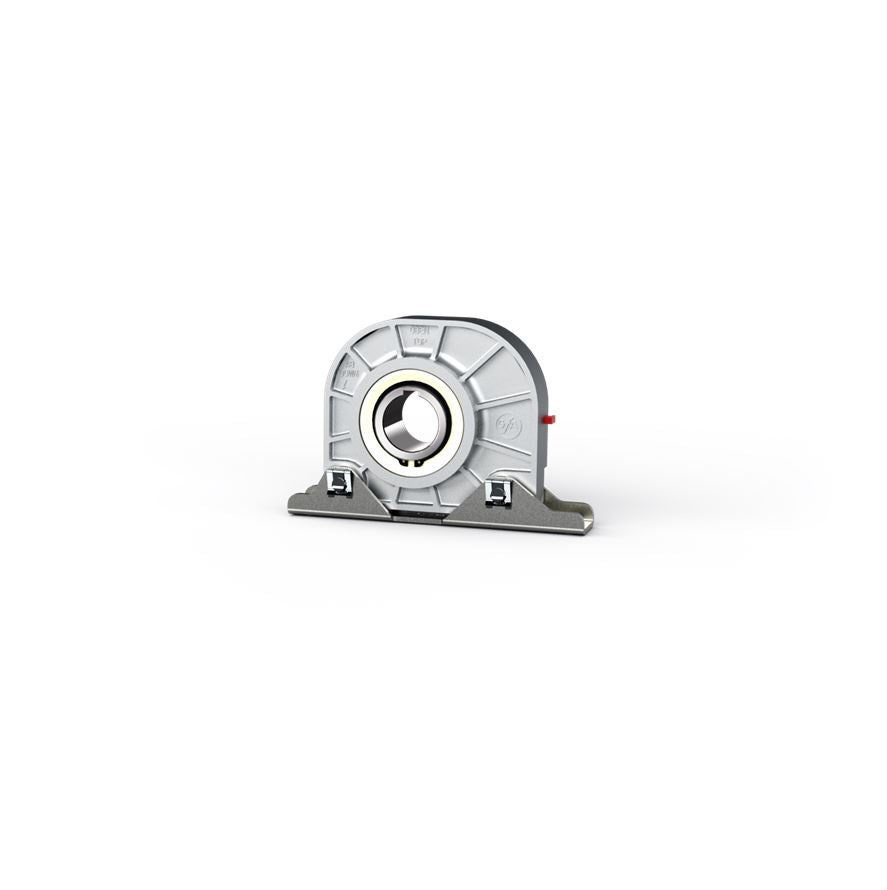

Safety Brake - FG 80-40

Safety Brake - FG 80-40

Part No.


Overview

Safety Brake - FG 80-40
Max Torque: 800 Nm
Hollow Shaft Dia: 40 mm
Max. Operating Speed: 24 RPM
Locking Torque: 2260 Nm
Weight: 3.9 Kg
Protection Class: IP65
Temperature Range: -20/+60 Celsius
Certificate of conformity according to DIN EN 12604 / 12605
Cautions:
- Permissible Installation Position: Horizontal ONLY
- Dependent on the direction of rotation

Support

FG 80-40 | Manual

FG 80-40 | 2D Drawing
